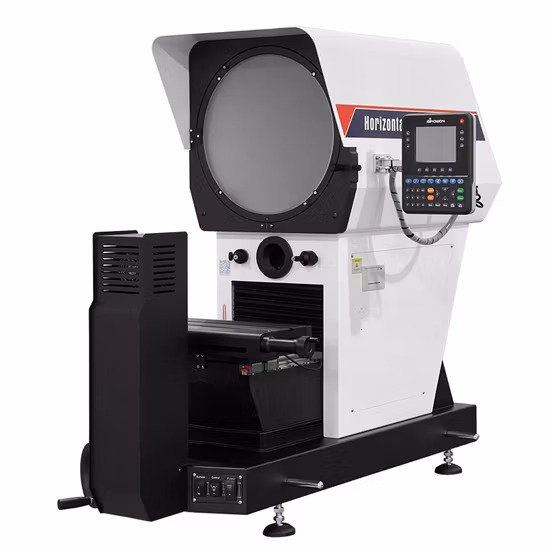

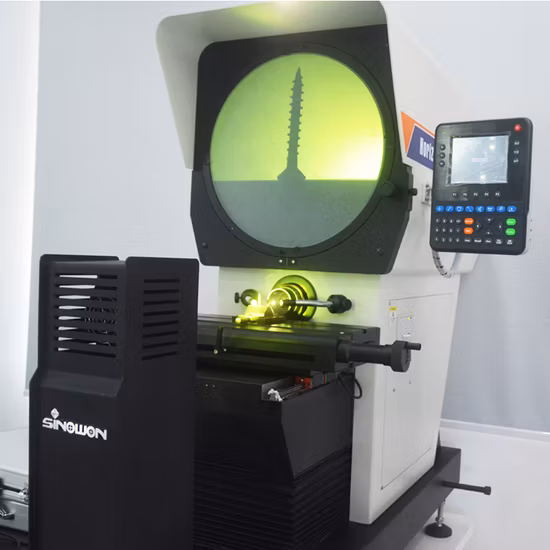

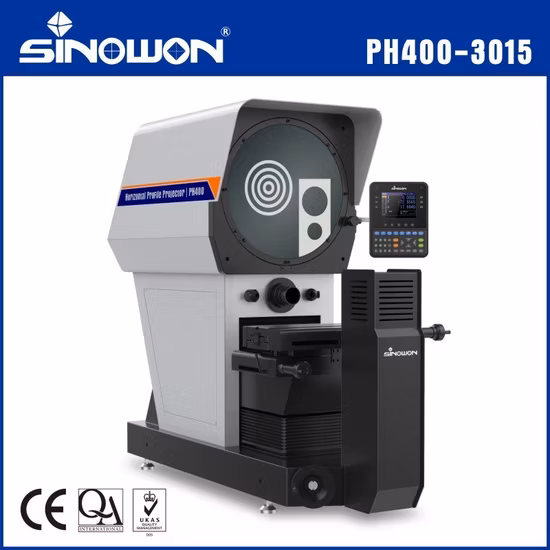

Erect Image Horizontal Profile Projector
Erect Image Horizontal Profile ProjectorProduct Features: 300mm diameter screen with digital protractor;200X100mm precis
Basic Info.
Model NO. | PH350-2010Z |
Sway Range | ±15° |
X and Z Linear Resolution | 0.0005mm |
Stage Travel:X and Z-Axis | 200X100mm |
Metal Stage Size | 408X126mm |
Transport Package | Plywood |
Specification | CE EU ISO9001 |
Trademark | Sinowon |
Origin | Dongguan China |
HS Code | 9031491000 |
Production Capacity | 100 Piece/Month |
Product Description
Erect Image Horizontal Profile ProjectorProduct Features:300mm diameter screen with digital protractor;200X100mm precision movement work-stage;Work-stage sway range between 15°;Halogen profile and fiber surface illumination adjustable;Geometric multifunction data processing system upgrade to DRO DP300;Built-in Mini-printer;Available 10x,20x,50x,100x objective, over-chart and foot-switch edge detector etc.
Technical Specifications:
Reverse Image | PH300-2010(#512-301) |
Obverse Image | PH300-2010Z(#512-311) |
Metal Stage Size | 408x126mm |
Stage Travel: X and Y-axis | 200x100mm |
Stage Travel:Y-axis | 75mm (for focusing) |
X and Z Linear Resolution | 0.0005mm |
Sway Range | ±15° |
Accuracy | ≤3+L/200(um) |
Screen | Diameter :Ø330mm,Effective Range ≥ Ø300(with "* " Reticle) |
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1' or 0.01° | |
Digital Readout | DP 300 (561-301) Multifunctional Data Processing System |
Illumination | Contour illumination:24v/150w (halogen Lamp ) |
Surface illumination:21v/150w (Optical Fiber) | |
Power Supply | AC110V/60Hz; 220V/50Hz,650w |
Dimension (D×W×H) | 1160x600x960mm |
Packing Dimension (L×W×H) | 1300x880x1250mm |
Instrument Gross/Net Weight | 260/220kg |
Standard Delivery:
Product Name | Code # | Product Name | Code # | Product Name | Code # |
Digital Readout DP300 | 561-301 | PH300-10x Objective | 512-W11 | Screen Clamp Device | 581-341 |
Built-in Mini-printer | 581-901 | Power Cable | 581-921 | Manual Operation | PH300-2010 |
Optional accessories:
