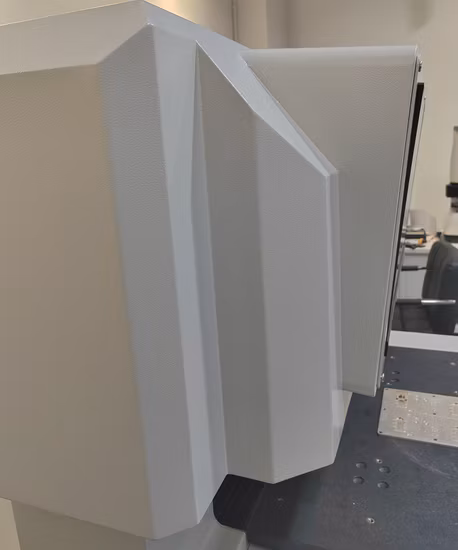

Flatness Testing Machine/Flatness Measuring Instrument/3D Laser Surface Scanning System

Basic Info.

Model NO.	ITN-L1-540
Transport Package	Wooden Box Package
Specification	L*W*H=1670*1470*1950mm
Trademark	GIEZHY
Origin	Guangzhou China
HS Code	9015400000
Production Capacity	1000

Product Description

• Application scenario

Instrument characteristics :

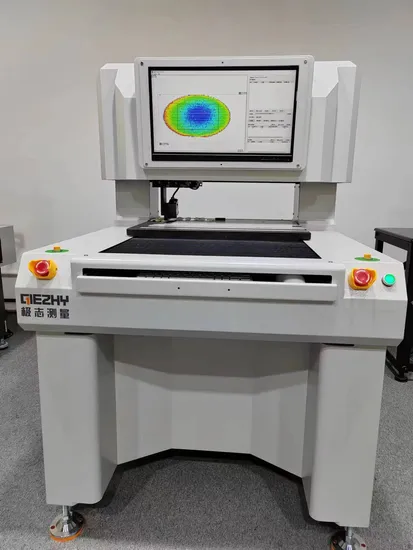

This equipment scans and takes points on the surface of the work-piece through the imported high-precision laser probe to obtain the contour data of the work-piece surface to build the 3D contour point cloud map, and then calculates the flatness and warpage,

1. Flatness and warpage can be done for a single product or multiple products
2. Production line batch measurement mode and sampling measurement mode.
3. The monitoring value of flatness and warpage can be preset, and the alarm can be alarmed if the tolerance is out of tolerance
4. Te measurement data can be exported to EXCEL.
5.Editable measurement program and editable program call out.
According to the actual product size, to put a single piece of product or multiple pieces of product testing

Technical parameter :

Model number	ITN-L1-320	ITN-L1-540
Main function of equipment	Flatness and warping measurement
OVERALL DIMENSIONS(L*W*H)	1220x700x1200mm	1200*1000*1500mm
Measuring stroke	X,Y:200*300mm	X,Y:400*500mm
Measuring product types	Transparent and non-transparent products can be tested
Repeatability	Flatness: ≤3 (standard parts)
Loading and unloading method	Manual loading and unloading (or robot hand)
Cycle speed	200mm/s
Laser measuring system	Made in Japan
Weight	450kg	500kg
Load-bearing	2kg
software	GIEZHY measuring software
computer	included
Consumable evaluation	Mouse, keyboard, photoelectric switch, power switch
Operating person	1 person
Working environment	AC220V±10%, 50Hz; Power consumption: 2000W; Temperature: 22±2ºC; Humidity: 45-75%
