Surface Roughness Comparator

Basic Info.

Model NO.	RUG-100
Usage	For Inspection
Shape	Rectangular
Customized	Customized
Transport Package	Well Package
Specification	30*20*10
Trademark	pride
Origin	China
Production Capacity	1000piece/Month

Product Description

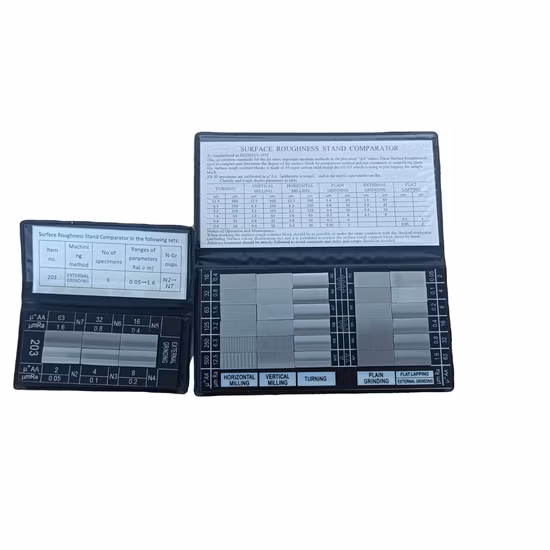

Surface Roughness Comparator

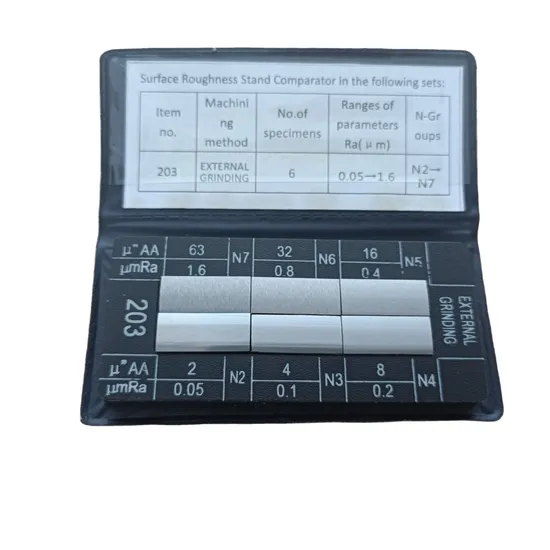

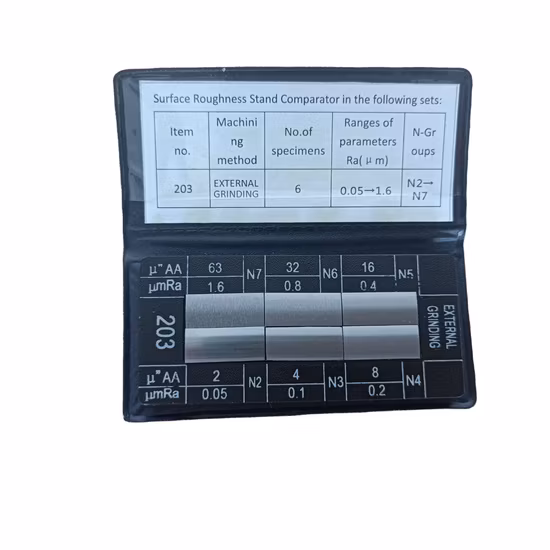

Surface roughness comparator is used to check the smooth finish of a mechanical workpiece by comparision method and eye estimation or microscope is used to compare and detect the degree of the surface roughness.FEATURES:RUG-100:Note book sample block(turning,vertical milling,plain milling, plain grinding, extermal grinding, polishing.)

Notebook sample block contains standards for the six most important maching methods in the prevalent "AA" values. All 30 speciments are calibrated in uAA(Arithmetical Average) and in the metric equivalents um Ra.Surface roughness comparsion scales following:

Turning		Vertical Milling		Horizontal Milling		Plain Grinding		Extermal Grinding		Plat Lapping
um	uin	um	uin	um	uin	um	uin	um	uin	um	uin
12.5	500	12.5	500	12.5	500	1.6	63	1.6	63
6.3	250	6.3	250	6.3	250	0.8	32	0.8	32
3.2	125	3.2	125	3.2	125	0.4	16	0.4	16
1.6	63	1.6	63	1.6	63	0.2	8	0.2	8
0.8	32	0.8	32	0.8	32	0.1	4			0.1	4
0.4	16	0.4	16	0.4	16	0.05	2			0.05	2
