Measuring Instrument Toolmaker Microscope for Optical Microscope

Basic Info.

Model NO.	MDS400D
Shape	Cylindrical Shaped Lens
Usage	Teaching, Research
Principle	Optics
Principle of Optics	Metallographic Lwd Infinity Optical System
Coaxial Coarse and Fine Focusing Unit	Coarse Strok:10mm, Per Rotation 0.2mm, 2μm
C-Mount	0.5X/1.0X
Lwd Infinity Plan Objective	5X/10X/20X/50X
Polarizing Unit	Polarizer/Analyzer
Koehler Illumination	12V/50W Halogen Lamp
Mechanical Stage	210mmx180mm
Filter	Blue
Nosepiece	Quadplex Specially for Bright/Dark Field Objective
Transport Package	Carton
Specification	660x590x325(mm)
Trademark	Optec
Origin	Chongqing
HS Code	9011100000
Production Capacity	50000PCS/Year

Product Description

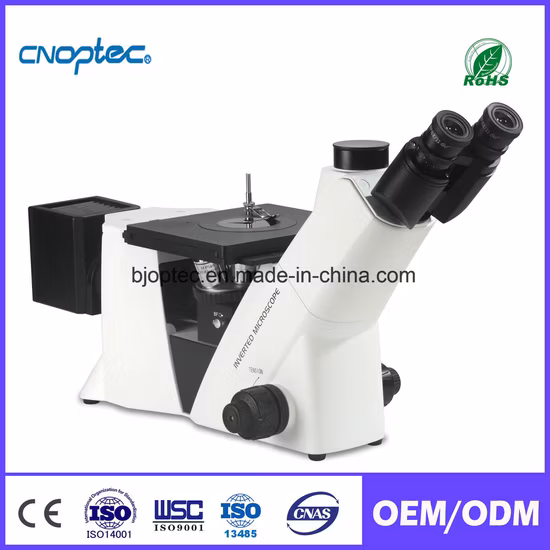

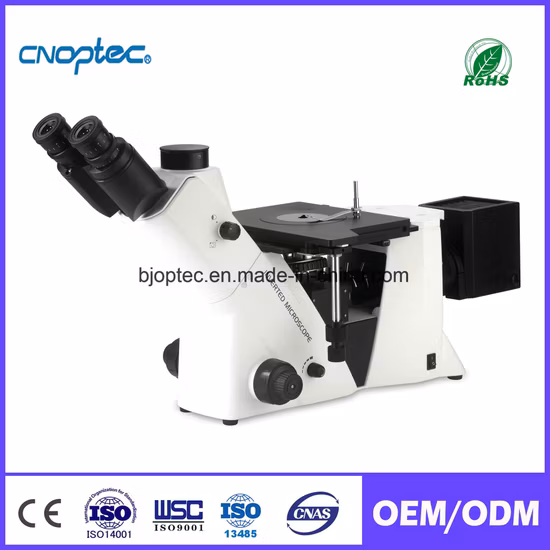

MDS Inverted Metallurgical Microscope

• New research and new development
• Combination with bight field,dark field,polarizing observation etc.
• Widely used in metal,mineral,electronic,field.

	Objective	N.A.	Working Distance (mm)	MDS400	MDS400D
Metallurgical LWD Infinity Plan Objectives	LPL 5×	0.13	24.23	--
	LPL 10×	0.25	18.48	--
	LPL 20×	0.40	8.35	--
	LPL 40×	0.65	3.90	○
	LPL 50×	0.70	1.95	--
	LPL 80×	0.80	0.85	○
	LPL100×	0.90	1.00	○
Metallurgical LWD Infinity Plan Objectives for Bright/Dark Field	M PLAN 5× BD	0.13	24.23		--
	M PLAN 10× BD	0.25	18.48		--
	M PLAN 20× BD	0.40	8.35		--
	M PLAN 50× BD	0.70	1.95		--
	M PLAN 80× BD	0.80	0.85		○
